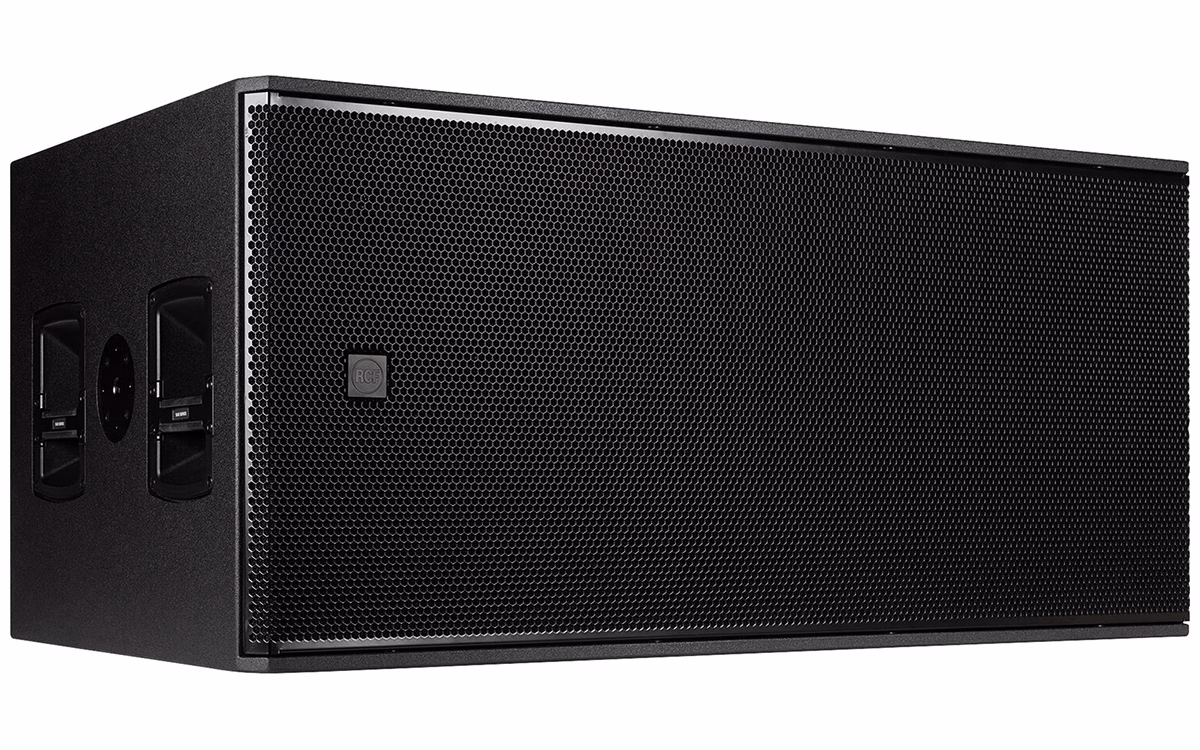

RCF SUB 8008-AS 4400W 2 x 18-inch Powered Subwoofer
The SUB 8008-AS is a double 18” high power active subwoofer for live bands, DJs, Clubs, and Rental Companies. It employs a state-of-the-art transducer featuring a high-power ceramic magnetic circuit with a 4” voice coil. The power amplifier manages extreme currents up to 4400W delivering sound pressure levels up to 137 dB with exceptional headroom. The ultra-fast attack with accurate power handling is managed with high efficiency, producing a very low heat loss for silent and fan-less cooling. Built specifically for demanding live sound applications with deep, powerful bass response. Rear panel controls include 12 presets, crossover frequency, polarity switch, Deep/Punch selection, cardioid, and output delay settings. The tour-ready, rugged all-wood cabinet with scratch-resistant polyurea coating is easy to carry and secure for installation. With its rugged construction, sound quality, and high power, SUB 8008-AS is perfect in mid to big-sized venues and touring applications.
Legendary subwoofers
Industry-Leading Subs
Power that moves
The most powerful amplifier in its class. RCF’s improvements in transducer design make them stronger and powerful, so the amplifier follows the evolution. With 4400W peak power, the 2-channel Class-D amplifier is able to manage extreme sound pressure levels with an ultra-fast attack, realistic transient response, and very low heat loss. So energy-efficient that there’s no need for a cooling fan – the amplifier is attached to a solid aluminum heat exchanger in the rear of the cabinet – with no moving parts. The stereo input circuit with crossover features a new low distortion design with an advanced safety limiter, maintaining the true character of the input signal at all levels. RCF amplifiers are designed according to EN62368-1 for maximum safety and present a Switch Mode Power Supply section joining high-efficiency with minimum weight.
Tour-ready workhorse
Features
Up to 137 dB Sound Pressure Level
4400W Class-D Bi-Amplification
30-120 Hz linear frequency response
2 x 18″ High Power Woofers
IP Rated Powercon TRUE1 TOP IN/OUT
8 Crossover Presets and 4 Cardioid Presets
Specifications
Acoustical specifications
Frequency Response : 30 Hz ÷ 120 Hz
Max SPL @ 1m : 137 dB
Transducers
Woofer : 2 x 18”, 4.0” v.c
Input/Output section
Input signal : bal/unbal
Input connectors : XLR
Output connectors : XLR
Input sensitivity : -2 dBu/+4 dBu
Processor section
Crossover Frequencies : Selectable
Protections : Thermal, Excurs., RMS
Limiter : Soft Limiter
Controls : Xover, Phase switch, Deep/Punch, Output Delay Setting
Power section
Total Power : 4400 W Peak
Low frequencies : 4400 W Peak
Cooling : Convection/Forced
Connections : Powercon TRUE1 TOP IN/OUT
Standard compliance
Safety agency : CE compliant
Physical specifications
Cabinet/Case Material : Plywood
Hardware : 2 x M20
Handles : 2 x side
Pole mount/Cap : M20 thread
Grille : Steel
Color : Black
Size / Weight
Height : 550 mm / 21.65 inches
Width : 1180 mm / 46.46 inches
Depth : 700 mm / 27.56 inches
Weight : 80 kg / 176.37 lbs
Shipping information
Package Height : 600 mm / 23.62 inches
Package Width : 1370 mm / 53.94 inches
Package Depth : 900 mm / 35.43 inches
Package Weight : 86 kg / 189.6 lbs
