Roland SPD-SX Sampling Percussion Pad
The Industry Standard Hybrid Sampling Pad
Since 2011, the SPD-SX has been a mainstay on professional stages worldwide, its distinctive profile regularly seen beside both digital and hybrid drum kits. This landmark Roland instrument sparked the sampling pad revolution with a wide range of tracks, clicks, loops, and one-shot sounds stored inside. Drummers and performing musicians can record, store, and trigger any type of sound on command—easing the burden of making live performances sound like the original recordings. Along with its sampling and import features, the SPD-SX comes with versatile preset kits and a large pre-loaded sample library, including loops, one-shot sounds, and melodic phrases to spark ideas and create music right away.
Join the Revolution Built to Perform
Building on the capabilities of its trailblazing SPD-S predecessor, the SPD-SX set the bar as the industry-standard sampling pad. Filled with pro features, this powerful pad has become an essential companion for drummers and all sorts of creative stage performers. It’s also built to thrive on the road—taking a beating night after night, on and off stage. Whether you rock out locally on the weekends or perform in sold-out stadiums, the SPD-SX won’t let you down.
Unlimited Sounds Sample, Import, and Trigger Audio
The SPD-SX puts a universe of sounds under your sticks. Trigger an entire track, song part, effect, click track, or one-shot sound with a single pad strike. Then take control over how the audio plays back. From playing covers at clubs and functions to reproducing original song tracks on concert stages, it’s easy to bring studio-level sounds to your live performances.
Instant Hit Velocity-Sensitive Pads
The SPD-SX has nine velocity-sensitive rubber pads, and any sound can be assigned to any pad. When you play the pads lightly, the sound plays back quietly. And when you’re ready to wail, play heavier hits for more volume. Alternatively, you can set a pad to fixed velocity, so the volume stays the same no matter how hard you play.
Light the Night LED Indicators
Each SPD-SX pad features a red LED indicator for onstage visibility and pad status. And to meet your performance needs, you can set the LEDs to behave in different ways. Assign them for fixed on/off status or make them appear only when the pad’s audio is playing. Or set them to illuminate dynamically with audio activity, similar to level meters on a mixing console.
Under the Surface Storage and Sounds
You can never have too many sounds, right? With 16 GB of storage, the SPD-SX supports up to 25 hours of stereo audio (50 hours of mono) in 16-bit/44.1 kHz WAV/AIFF format. The pad comes pre-loaded with 210 samples to get you started, including loops, one-shots, and melodic phrases. And there are 100 kits for storing your custom layouts, including 16 presets. And when you’re ready for more, visit Roland Cloud to dive into an ever-expanding range of samples and loops for every musical style.
Instant Creation Powerful Sampling Features
With the deep sampling features in the SPD-SX, you can easily capture your own unique sounds. Connect a mic or mono/stereo line-level device to the analog inputs or plug in a computer via USB. Then use Basic Sampling to capture a sound to the pad of your choice or Multi-Pad Sampling to record audio to multiple pads. It’s even possible to re-sample a performance within the SPD-SX, complete with effects processing.
Run It Back Playback Types
Once your sounds are loaded in, control how they play back with three customizable modes: Single, Phrase, and Loop. Choose Single for basic percussion sounds like drum hits and claps, and select Phrase for longer files that need to play once and stop at the end. Or choose Loop to play a file from start to finish and seamlessly loop the audio again.
Take Control Trigger Types
Want even more control over audio? No problem. You can select the trigger type when a pad is played. Choose Shot to play the audio each time a pad is struck. Alt plays or stops the audio each time the pad is hit. When you need maximum flexibility, trigger types can be used in conjunction with playback types. And lightning-fast triggering will keep you on the beat.
Start Your Engines Adding Effects
Harness the power of the three effects engines within the SPD-SX. You can use two effects engines simultaneously: master effects and kit effects. The master engine applies to all kits and has 21 different types to amp up your performance. Three common master effect presets on the front panel apply filters, delays, and short loops to any audio playing from the pad at that time. The two assignable kit effects will sound when you play a pad within a chosen kit patch, and you can turn them on and off for full control.
In and Out
Playing live requires many connections, and the SPD-SX makes getting sounds in and out of the pad simple. Dig into a range of outputs for easy mixing and monitoring. Load, organize, and record sounds with a USB connection and SPD-SX Wave Manager software. And expand your rig with up to four external pads, two footswitches, and accessories.
Get Connected Audio Outputs
With a range of flexible output and routing options, you can seamlessly send pad sounds to different locations for mixing and monitoring. Use the master left/right outputs to send stereo audio or two mono feeds to the mixing desk. Send sound to the monitoring engineer or band members with the left/right sub outputs. And keep tabs on your setup or monitor a click track via headphones.
Plug It In USB Audio/MIDI
Connect the SPD-SX to your computer via a USB cable for effortless recording with any DAW. You can connect with MIDI using a USB cable too. With legacy MIDI in/out, take control of software instruments, other gear on stage, and automation software like Ableton.
Load It Up Easy Sound Import
There are two ways to quickly transfer audio files to the SPD-SX. Load the files onto a USB flash drive and copy them across. Or use the free SPD-SX Wave Manager to drag and drop audio from a computer to individual pads. The software also includes intuitive tools to back up your work and organize kits for different gigs.
Adding Extras Essential Accessories
The SPD-SX plays well with accessories. Mount the pad to a PDS-20 or PDS-10 stand for gigging. Or grab an APC-33 clamp and mounting plate to attach it to a cymbal stand. Expand your trigger options with up to four external pads and two footswitches. And protect your instrument on the road with the CB-BSPDSX carrying bag.
SPD Sampling Pads
With advanced triggering and sampling technology, these pads fit perfectly into both electronic and hybrid setups—from the live stage to the recording studio, DJ booth, or home music room.
Specifications
Pads
Built-in Pads: 9 (with LED Indicators)
* Two external trigger inputs are provided, allowing you to connect up to four Pads.
Maximum Polyphony
20 voices
* Maximum polyphony becomes 16 voices according as an operating state.
Number of Recordable Wave Data
10,000
* Including preload wave data.
Sampling Time (Total time for all wave data)
Approx. 25 hours of stereo audio (50 hours of mono)
* Since the internal memory included with the SPD-SX contains preloaded data, the available sampling time will be less than the time above.
Data Format
16-bit linear PCM (WAV/AIFF)
Sampling Frequency
44.1 kHz
Kits
100
Kit Chain
8 chains (20 steps per chain)
Effects
Master Effects (21 Types)
Equalizer
Kit Effect 1 (20 Types)
Kit Effect 2 (20 Types)
Display
Graphic LCD 128 x 64 dots

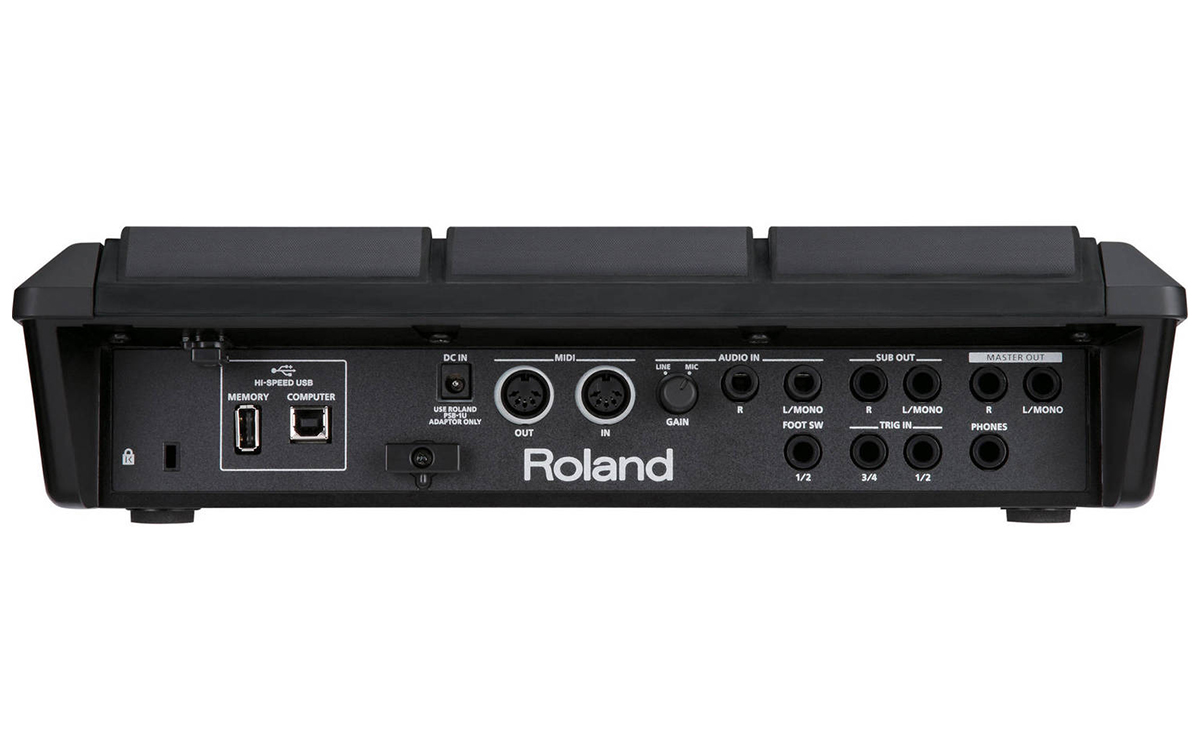

Connectors
PHONES jack (Stereo 1/4-inch phone type)
MASTER OUT jacks (L/MONO, R) (1/4-inch phone type)
SUB OUT jacks (L/MONO, R) (1/4-inch phone type)
AUDIO IN jacks (L/MONO, R) (1/4-inch phone type) (with LINE-MIC GAIN control)
TRIG IN jacks (1/2, 3/4) (1/4-inch TRS phone type)
FOOT SW jack (1/2) (1/4-inch TRS phone type)
MIDI connectors (IN, OUT)
DC IN jack
COMPUTER connector
USB MEMORY connector
Interface Hi-Speed USB (USB-MIDI, USB-AUDIO, USB Mass Storage Class, USB Flash Drive)
Power Supply: DC 9 V (AC Adaptor) Current Draw: 600 mA
Accessories: CD-ROM (SPD-SX Wave Manager, USB driver, preload wave data)
Owner’s Manual
AC Adaptor
Size and Weight
Width : 364 mm ,14-3/8 inches
Depth: 331 mm , 13-1/16 inches
Height :94 mm ,3-3/4 inches
Weight: 2.5 kg ,5 lbs. 9 oz.
